Small Stack Layer Cage System — H-Type Automation for 10,000–30,000 Bird Farms

The small stack layer cage takes everything that works in our flagship H-type line — vertical stacking, per-tier automation, hot-dip galvanized frames — and packages it into a 1260×1300×470 mm module dimensioned specifically for the 10,000–30,000 bird houses that make up the backbone of Africa's and Southeast Asia's egg supply. Narrower houses, lower ceilings and smaller budgets do not have to mean ladder cages and hand-collected eggs.

Each door groups 8–9 hens at 468.75 cm² per bird, stacked 4 to 12 tiers. The smaller module pays dividends where transport is expensive: more sets fit per container relative to the house they equip, which is exactly what a first-time buyer importing one 40HQ to a 15,000-bird house needs.

Key Features

Mid-farm automation at full-scale spec

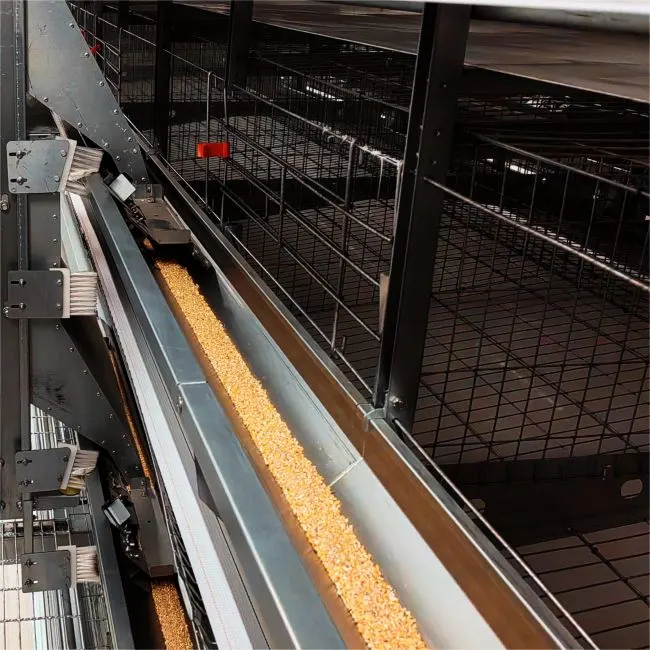

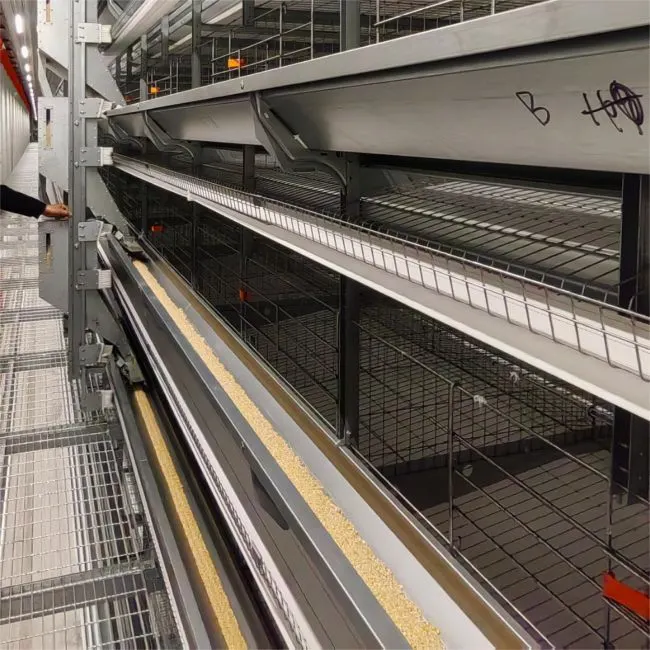

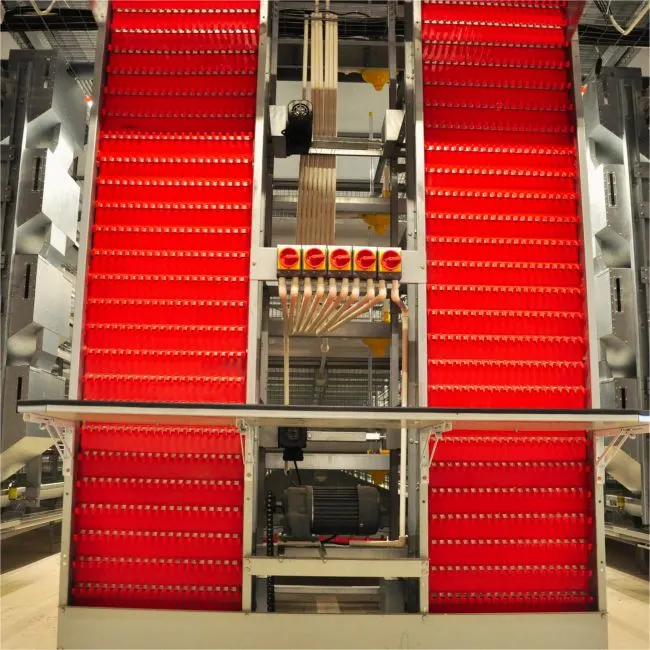

Driven feeding, nipple drinking, front egg face and belt manure removal are the same components used on our 100k+ bird projects — the module shrank, the specification did not.

4–12 tiers on your ceiling height

We design tier count to your effective eaves height: 4 tiers for a 3.2 m house, up to 12 where the building allows, so the same cage line equips a startup shed and an integrator block.

Container-smart engineering

Set geometry is tuned so a mixed load of frames, belts and troughs fills a 20GP/40GP with minimal air — landed cost per bird is part of the design brief, not an afterthought.

Upgrade path to the flagship

Because it is H-type architecture, your service history, spare parts and layouts stay compatible if you expand into large-stack houses at your next site.

Why Mid-Scale Farms Choose This Module

Below 10,000 birds, an A-type ladder cage often wins on price. Above 30,000, big H-type lines earn their premium. In between — the sweet spot where most of our Nigerian, Tanzanian and Philippine customers actually operate — the small stack module delivers H-type automation economics (one feeding pass per house, eggs out without human hands, manure out daily) at a capital number that a cooperative loan or personal savings can carry. It is also the configuration we recommend to integrators building satellite farms around a central feed mill and collection hub.

Realistic House Sizing

As a working guide: a 12 m × 60 m house with two rows of 8-tier small-stack cages carries on the order of 20,000 layers with comfortable walkways. Send your house plan and we will fix the exact row count, belt exits and controller positions in the drawing. Warranty terms, galvanizing mass (about 275 g/m²) and the 20-year structural rating are written into the proforma — not marketing copy.

Shipping, Payment and After-Sales

We export to customers across Africa, Asia and the Middle East — including Nigeria, Tanzania, Ghana, Uganda, Kenya, Zambia, South Africa, Mozambique, Senegal, Cameroon, Zimbabwe, Malawi, the Philippines, Guyana, Gambia and Equatorial Guinea. Full container loads ship as bulk-packed sets; LCL orders travel in wooden cases.

Why Buyers Choose ZEUSYANG

• Own factory, 15+ years — hot-dip galvanizing, roll-forming and welding lines under one roof in Cangzhou, Hebei. Video factory tours available on request.
• One-stop supply — cages plus feeding, drinking, egg collection, manure removal, ventilation, cooling and environmental control from a single quotation.
• Engineered for longevity — 275 g/m² hot-dip galvanized surfaces rated 15–20 years in house; stainless and aluminum wear parts where corrosion is worst.
• Layout before quotation — send flock size and house dimensions, our engineers return cage layout drawings, equipment lists and FOB prices.
• Delivery you can plan around — about 600 sets in stock, 2 weeks to prepare a full order, 5 days to ship from stock or 20 days after production.
• Installation that works at destination — free drawings and installation videos, online guidance, and engineer dispatch to your farm when needed.
